DWLG enables direct water level reading for steam and water service with multiple pressure ratings up to 207 bar @ 370℃. It adopts stainless steel body, safety isolation valves and mica-protected glass. Optional LED/halogen light, outdoor adaptability and explosion-proof design, reliable and maintenance-free.

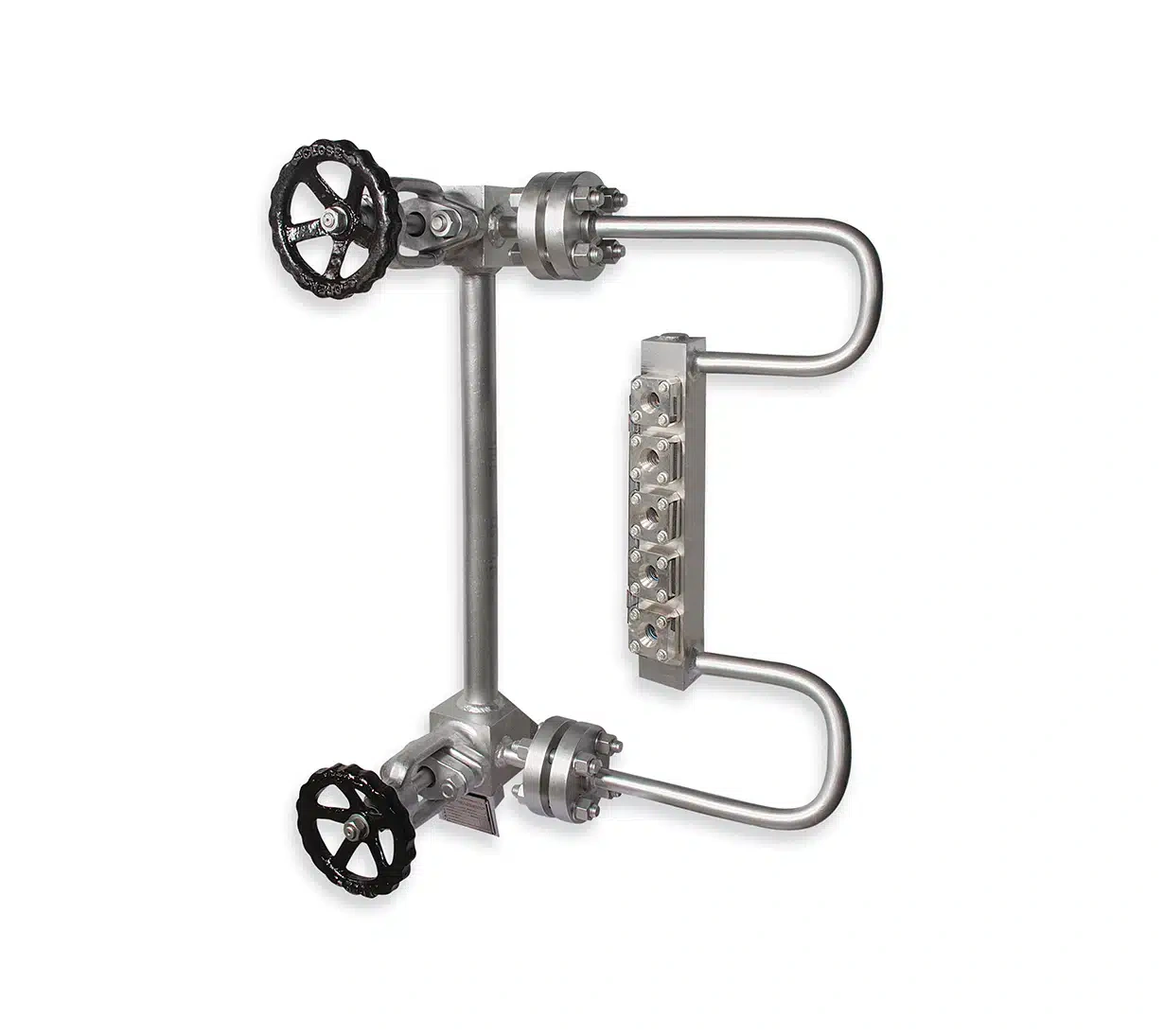

➤ Direct Water Level Gauge (DWLG) Levelstate Colour Port Type Water Level Gauges(DWLG) provide a direct reading of the water level and are suitable for steam/water applications. Levelstate Gauges are reliance and maintenance free thereby minimising operating costs for the user.Levelstate DWLG is available in various pressure ratings, which used along with the high intensity illuminating device and accessories makes it one of the most reliable and user friendly systems available. Gauge Type 300 is available for pressure rating up to 207 bar @ 370℃. ➤ Features
Various level of visibility and centre to centre distance depending on site requirement
Stainless steel gauge body to prevent buildup of magnetic particles and welding failure (due to carbide precipitation) this ensuring long life

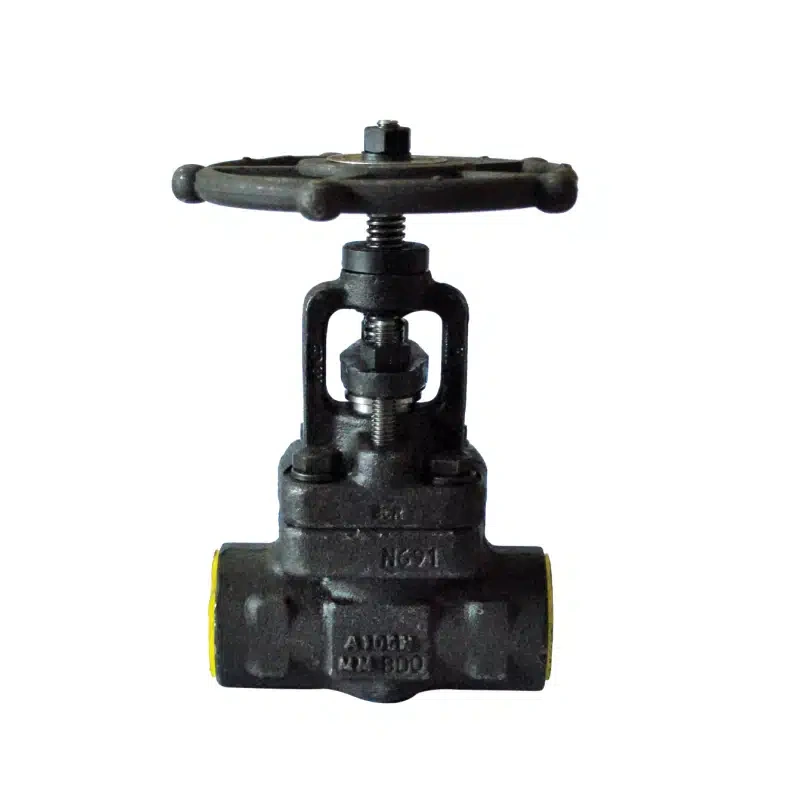

High pressure block valves for thus isolation

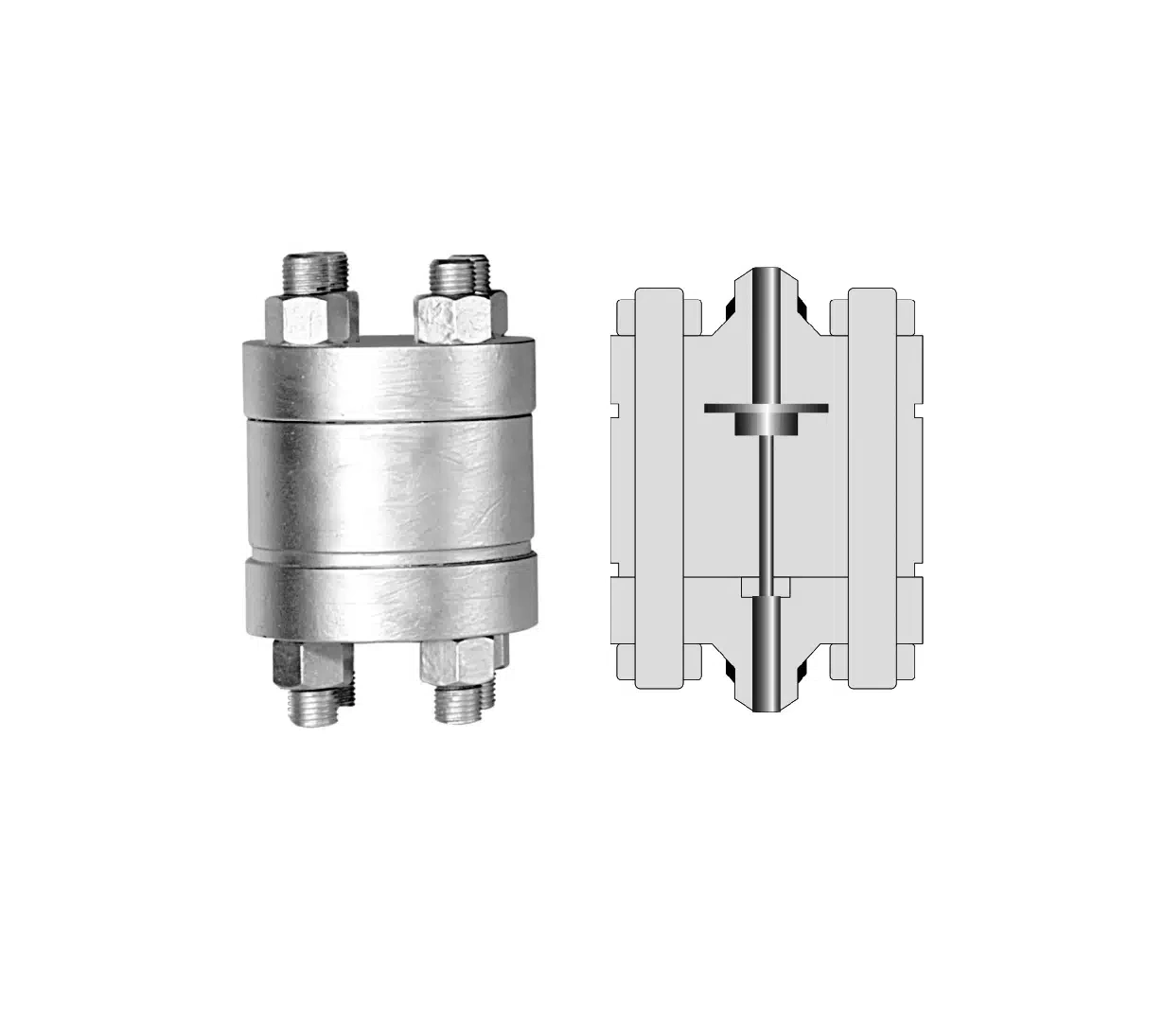

Enhanced safety through orifice spacer in the steam side and ball check valve in the water side
Internal components specially coated for corrosion protection
Glass protected by high quality mica

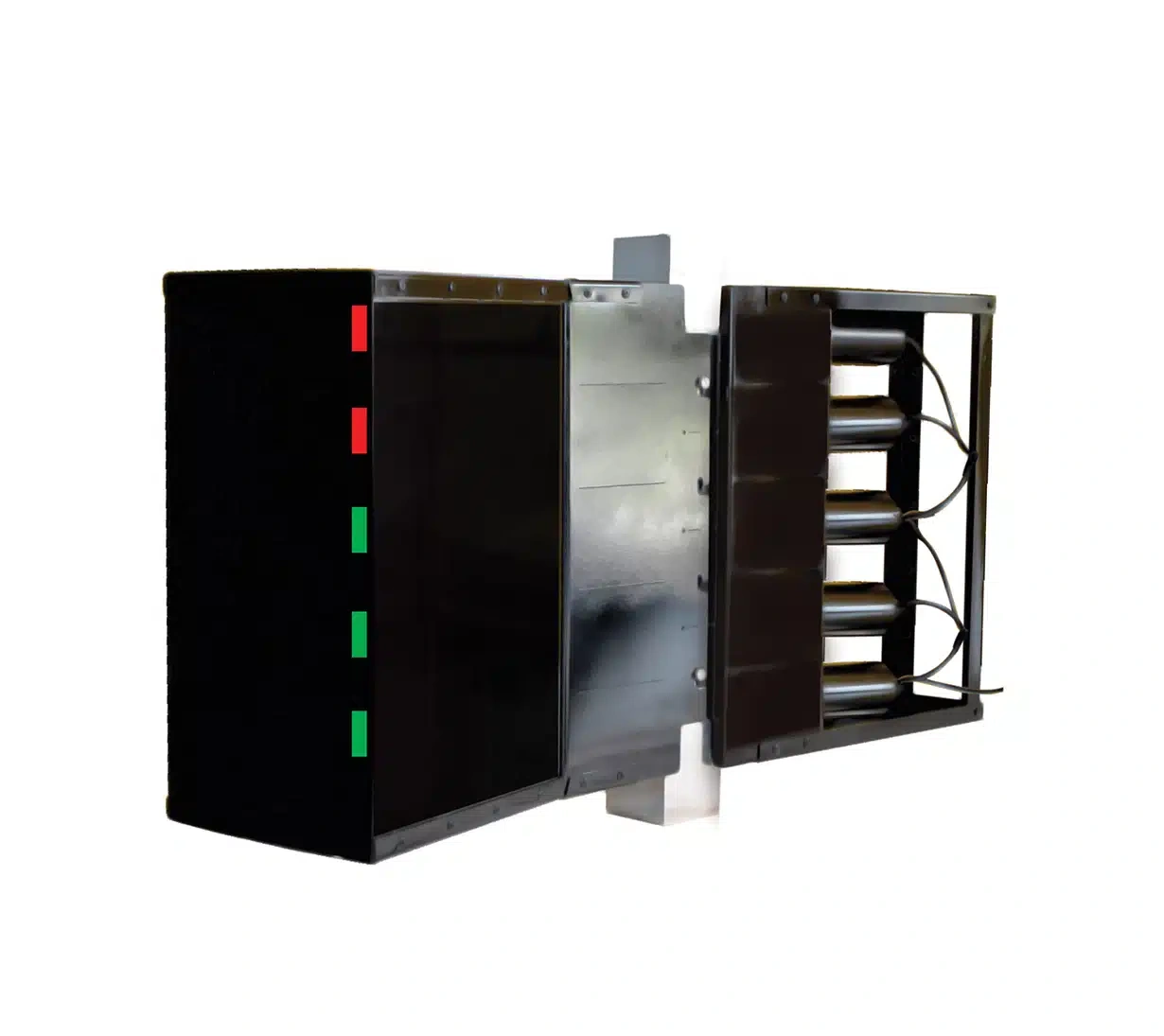

Option of LED and Halogen illuminator
Suitable for outdoor weather conditions
Explosion proof (optional)
