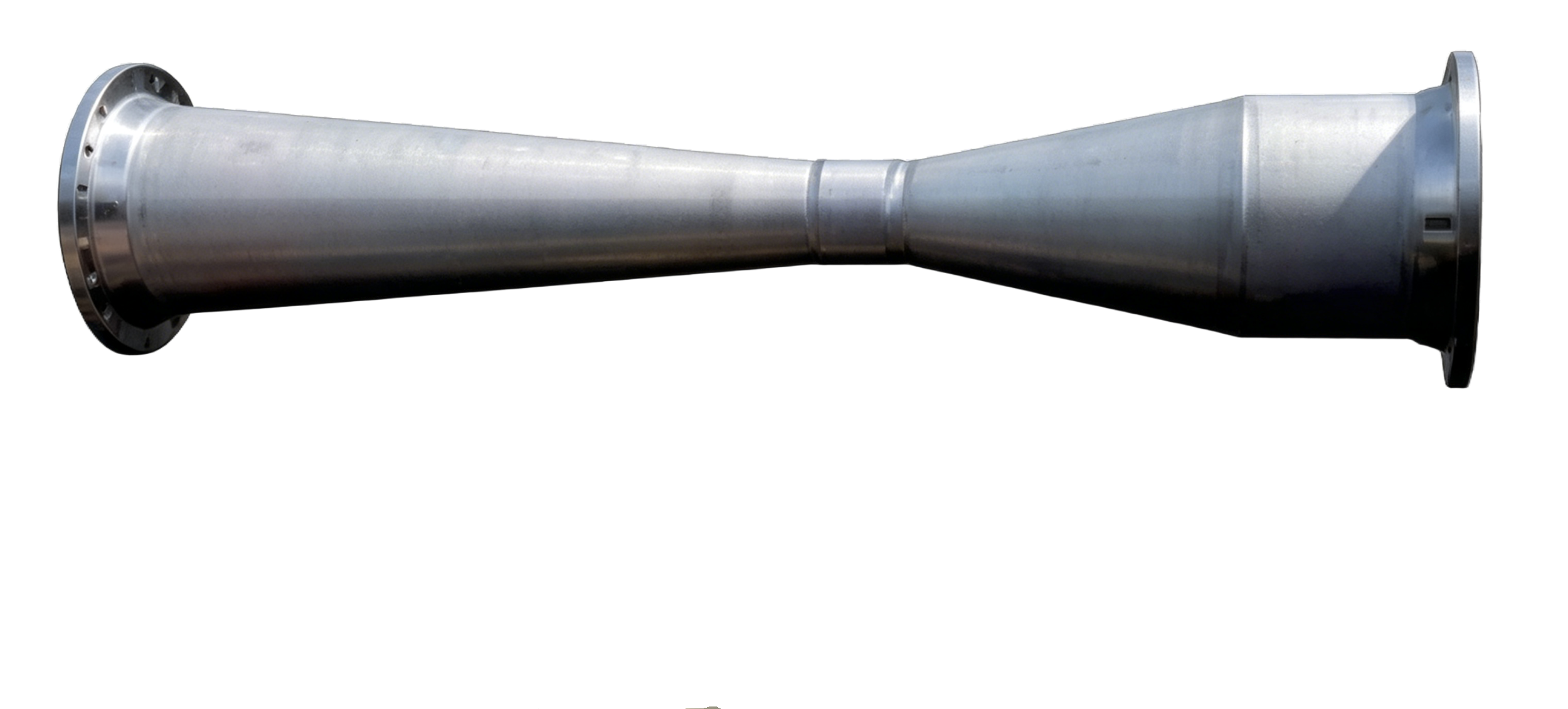

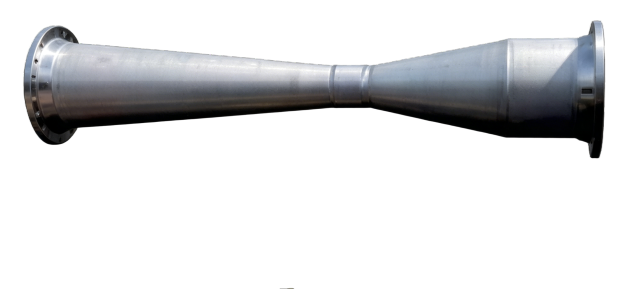

Venturi Tube Flowmeter

The INTRA-AUTOMATION IVT Venturi Tube is a high-performance differential pressure primary element designed for precise flow measurement with ultra-low permanent pressure loss. Built strictly to ISO 5167 and ASME MFC-3M standards, it delivers long-term reliability, high durability, and resistance to clogging, making it ideal for energy-sensitive and dirty fluid applications.

Get a Quote

Descargar

Ver todas las descargas

Description

➤ Key Features

Compliance with ISO 5167and ASME MFC-3M
Extremely low pressure loss– saves energy
High stability, wear-resistant, low maintenance
Anti-clog design– less prone to sediment or slurry buildup
Available in machinedand welded construction
Tapless designoption for slurry, corrosive, or high-viscosity fluids
Jacketed versionfor heating or cooling service
Multiple pressure tapping types: piezometer ring, standard taps
End connections: flanged, butt-weld, slip-on

➤ Technical Data

Beta ratio: 4–0.75
Design angles: convergent 21°±1°, divergent 14°±1°
Pressure rating: up to ANSI 2500# / PN400
Temperature range: −40 … +280 °C
Sizes: DN50 … DN600+(larger on request)
Materials: carbon steel, 304SS, 316SS, special alloys

➤ Typical Applications

Steam, water, crude oil, chemicals, slurry, wastewater, district heating, power plants, energy metering, and high-efficiency flow systems where pressure loss is critical.
