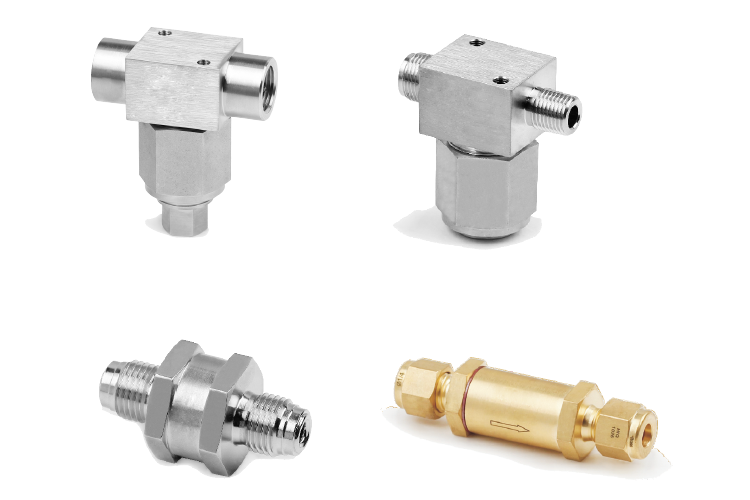

Filters

Specifications

Type TFT Series

1. Filter element can be replaced online
2. Combined bonnet design for enhanced safety
3. Standard sintered filter element nominal sizes: 0.5, 2, 7, 15, 40, 60, 80 µm
4. Standard screen filter element nominal sizes: 100, 150, 250 and 450 µm
5. Maximum working pressure: 414 bar (6000 psig)
6. Working temperature: -29 °C to 482 °C (-20 °F to 900 °F)
7. Body materials: 316, 316L, 304, 304L, 904L stainless steel and brass options available
8. Various end connection styles available

Type TFB Series with Bypass Structure

1. Bottom bypass port available for sampling or cleaning
2. Combined bonnet design for enhanced safety
3. Standard sintered filter element nominal sizes: 0.5, 2, 7, 15, 40, 60, 80 µm
4. Standard screen filter element nominal sizes: 100, 150, 250 and 450 µm
5. Maximum working pressure: 414 bar (6000 psig)
6. Working temperature: -29 °C to 482 °C (-20 °F to 900 °F)
7. Body materials: 316, 316L, 304, 304L, 904L stainless steel and brass options available
8. Various end connection styles available

Straight-through FI Series

1. Compact design, space-saving
2. Standard sintered filter element nominal sizes: 0.5, 2, 7, 15, 40, 60, 80 µm
3. Standard screen filter element nominal sizes: 100, 150, 250 and 450 µm
4. Maximum working pressure: 207 bar (3000 psig)
5. Working temperature: -29 °C to 482 °C (-20 °F to 900 °F)
6. Body materials: 316, 316L, 304, 304L, 321 stainless steel and brass options available
7. Various end connection styles available

Fully Welded Straight-through FW Series

1. Large filtration area with high flow coefficient
2. All-welded construction eliminates leaks
3. Backflushing can be achieved by reverse flow
4. Filter element is welded to the body to prevent contaminants from bypassing through the gap
5. Standard sintered filter element nominal sizes: 0.5, 2, 7, 15, 40 and 80 µm
6. Maximum working pressure: 414 bar (6000 psig)
7. Working temperature: -29 °C to 482 °C (-20 °F to 900 °F)
8. Body materials: 316, 316L, 304, 304L, 904L stainless steel options available
9. Various end connection styles available
